Pump Division

MAHASAFE 400PEW

Water tank integrated type

A new concept disaster prevention pump system with its own water tank
(High-performance multi-purpose pump system that can be easily attached and attached to the work vehicle)

MAHASAFE 400PEW is a disaster prevention equipment capable of responding to various disasters at the touch of a button quickly without complicated procedures even in an emergency situation even in an emergency situation by introducing the latest control system.

Engine pump (MAHASAFE 400PEW)

Application field
Fire truck replacement function
For initial disaster response
Disaster prevention equipment for islands and mountains
High-rise building / long distance transfer to Suwon
Extinguish fires in alleyways and narrow areas
Petrochemical complex disaster prevention equipment (foam spinning function)
Multipurpose use (for agriculture, cleaning, etc.)

Special function (safety device)

  • Automatic power off function when Suwon is exhausted
  • Overpressure protection device (automatic power cut off when setting pressure is exceeded)
  • Power cut off during breakage during water waterproofing and automatic reconnection function when rewatering

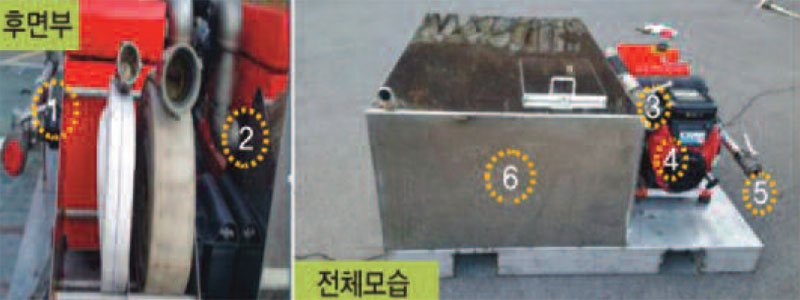

Name Description Pump, Frame & Water Tank

No. Name Description Remark
1 Hose holder 40 discharge hose 6EA can be loaded optional
2 Battery 12v 40Ah optional
3 Suction valve 65mm, ball vale, fire fighting FE selection optional
4 Engine 23HP, Air-cooled Gasoline Engine optional
5 discharge valve 40A Ball valve optional
6 6Water tank SUS material, internal diaphragm installed, maximum 1000liter

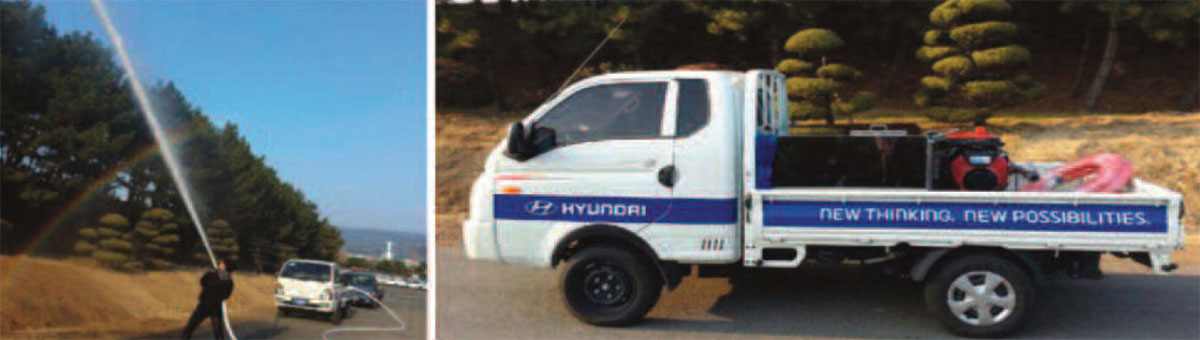

Demonstration scene Hyundai Motor Company
